Honda Odyssey Owners Manual: Engine Compartment Fuse Box (Primary)

Honda Odyssey Owners Manual / Handling the Unexpected / Fuses / Engine Compartment Fuse Box (Primary)

Located on the passenger’s side, near the windshield washer reservoir. Push the tabs to open the box.

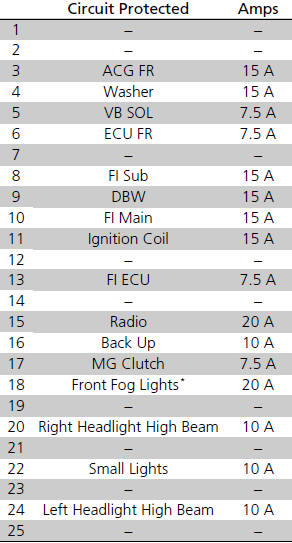

■ Circuit protected and fuse rating

    Fuses

    Engine Compartment Fuse Box (Secondary)
