Honda Odyssey Owners Manual: Driver Side Fuse Box
Located under the dashboard.

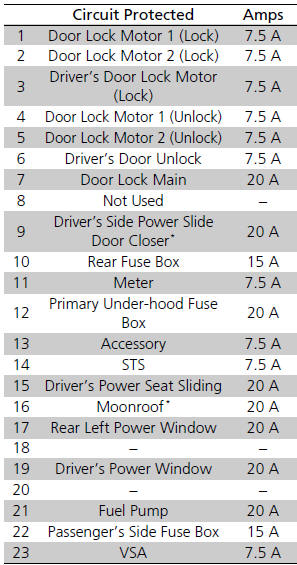

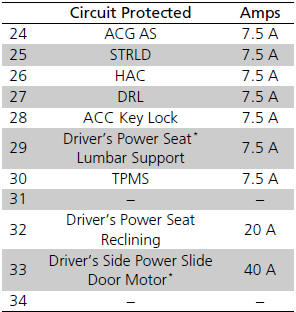

Fuse locations are shown on the label on the side panel. Locate the fuse in question by the fuse number and label number. ■ Circuit protected and fuse rating
|
