Honda Odyssey Owners Manual: Rear Climate Control System

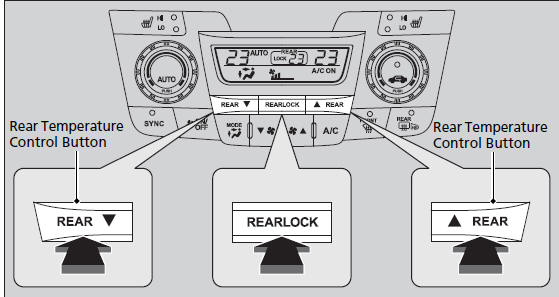

Using the Rear Climate Control System From the Front Panel

Use the system when the engine is running.

1. Press the REARLOCK button.
► LOCK appears on the front control panel. The rear system changes to AUTO mode.
2. The system automatically adjusts the fan speed and airflow levels to maintain the set rear temperature.
► Change the temperature if necessary.
3. To turn off the rear climate control system, press and hold the REARLOCK button for a few seconds.

AUTO LOCK appears on the rear control panel while the rear lock is on.

If the rear lock is on while in SYNC mode, the rear control panel is disabled. AUTO LOCK SYNC appears on the rear control panel.

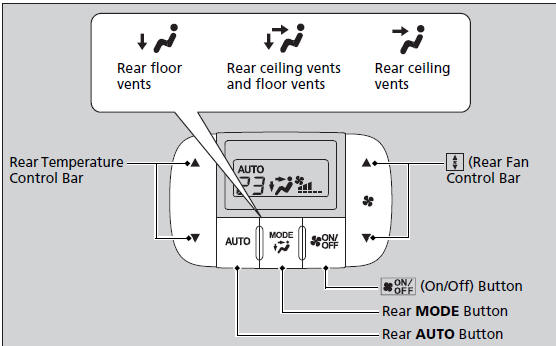

Using the Rear Climate Control System From the Rear Panel

Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the rear temperature control bar.
3. To turn off the rear climate control system, press button.

When the REARLOCK button on the front control panel is off, the temperature of the rear passenger compartment can be controlled independently.
