Honda Odyssey Owners Manual: Audio Error Messages

Honda Odyssey Owners Manual / Features / Audio Error Messages

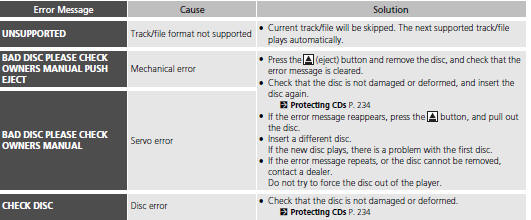

CD Player

If a disc error occurs, you may see the following error messages.

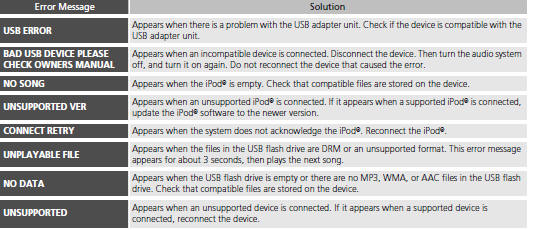

iPod®/USB Flash Drive

If an error occurs while playing an iPod® or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer.

    Switching to HFL

    General Information on the Audio System
