You can set the temperature synchronously for the driver side, the passenger side and the rear passenger compartment in synchronized mode.

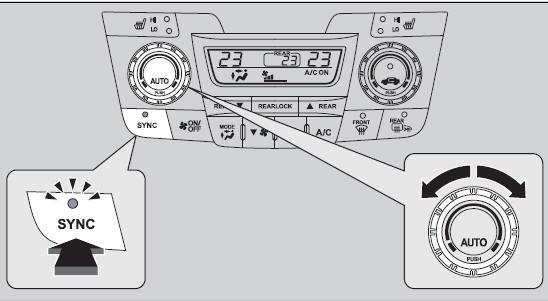

1. Press the SYNC button. Press the SYNC button to return to dual mode. When the system is in dual mode, the driver side temperature, the passenger side temperature and the rear passenger compartment (if it is on) can be set separately. |
Honda Odyssey Service Manual > Rear Entertainment System Description: Rear Controller and Screen Connector for Inputs and Outputs (RES type)
REAR CONTROLLER AND SCREEN CONNECTOR A (24P)REAR CONTROLLER AND SCREEN CONNECTOR B (12P) REAR CONTROLLER and SCREEN CONNECTOR A (24P) 1 1 1 2 2 3 2 4 1 0 2 2 9 2 1 8 2 0 7 1 9 6 1 8 5 1 7 4 1 6 3 1 5 2 1 4 1 1 3 Wire side of female terminals Cavity Wire Color Terminal Name Description A ...
