Honda Odyssey Owners Manual: Rear Fuse Box

Located on the left side of cargo area.

Remove the cover by prying on the edge of the cover using a flat-tip screwdriver.
► Wrap the flat-tip screwdriver with a cloth to prevent scratches.

Fuse locations are shown on the fuse box cover.

Locate the fuse in question by the fuse number and box cover number.

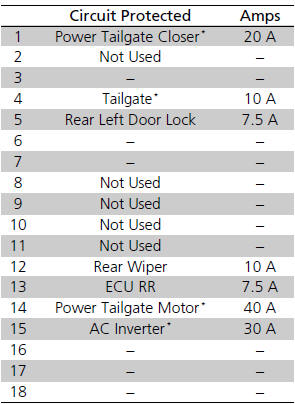

■ Circuit protected and fuse rating

    Passenger Side Fuse Box

    Inspecting and Changing Fuses
