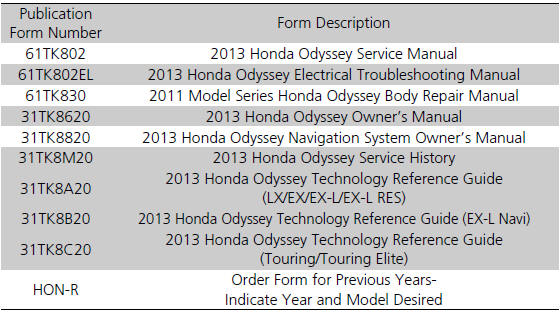

The publications listed below can be purchased from Helm Incorporated. You can order a manual by phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com. Make an inquiry to Helm Inc. at (800) 782-4356 if you are interested in ordering other models' or other years' manuals. Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
For Canadian Owners: |
Honda Odyssey Service Manual > Blind Spot Monitor: Blind Spot Information System (BSI) Radar Unit Inputs and Outputs
1 2 3 4 5 6 Terminal side of female terminalsLEFT SIDE BSI RADAR UNIT 6P CONNECTOR Terminal number Wire color Terminal name Description Signal 1 LT GRN IG1 ECU RR(7.5A) Power supply for the BSI radar unit Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V 2 RED DR BSI IND+ Drives th ...
