Honda Odyssey Owners Manual: Safety Labels
Honda Odyssey Owners Manual / Safe Driving / Safety Labels

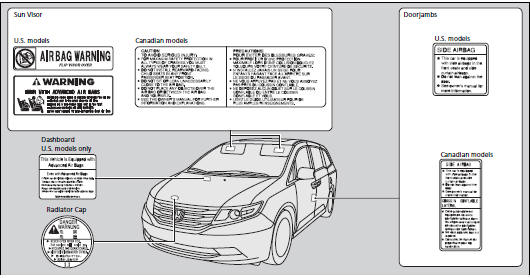

Label Locations These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer for a replacement.
|
