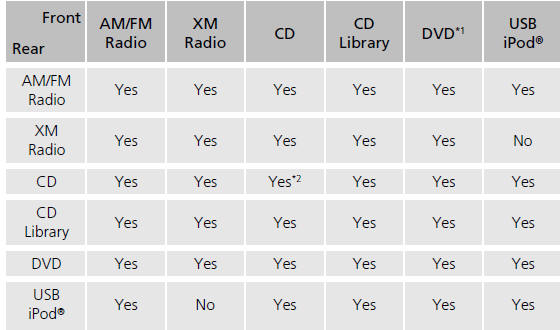

The table shows the possible audio source combinations of the front audio system and rear entertainment system’s simultaneous use. *1: The front seat passengers are only able to hear the DVD’s sound from the
front
speakers. Yes: These audio sources are simultaneously playable. No: These audio sources are not simultaneously playable. |
Honda Odyssey Service Manual > Rear Entertainment System Description: RES Auxiliary Jack Assembly Connector for Inputs and Outputs
RES AUXILIARY JACK ASSEMBLY 14P CONNECTOR RES AUXILIARY JACK ASSEMBLY 14P CONNECTOR 6 5 4 1 4 1 3 1 2 1 1 1 0 3 9 2 8 1 7 Wire side of female terminals Cavity Wire Color Terminal Name Description 1 ORN RR AUX DET Detects RES auxiliary jack assembly 2 GRY* AUDIO IN SH Shield for terminal ...
