The ignition switch must be in ACCESSORY

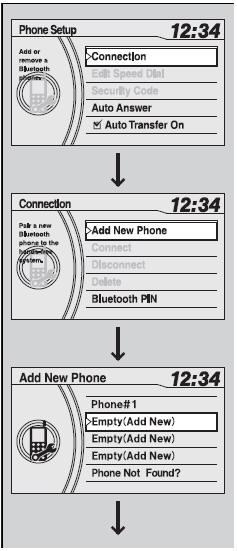

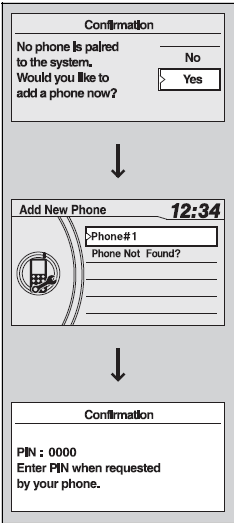

To use HFL, you must first pair your Bluetoothcompatible cell phone to the system while the vehicle is parked. ■Phone Setup ■ To pair a cell phone (when there is no phone paired to the system) 1. Press the PHONE button or the
From your phone, select
HandsFreeLink.
When your phone prompts you, input the
four-digit pairing code. Your Bluetooth-compatible phone must be paired to HFL before you can make and receive hands-free calls.

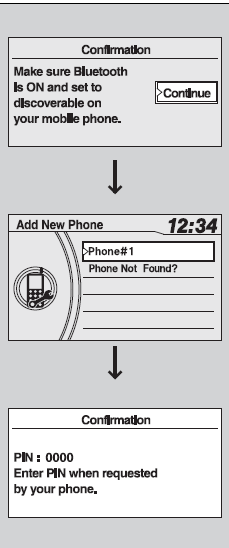

Phone Pairing Tips: ■ To pair a cell phone (when a phone has already been paired to the system) 1. Press the PHONE button or the 6. Make sure your phone is in search or
discoverable mode, then press
From your phone, select
HandsFreeLink.
When your phone prompts you, input the

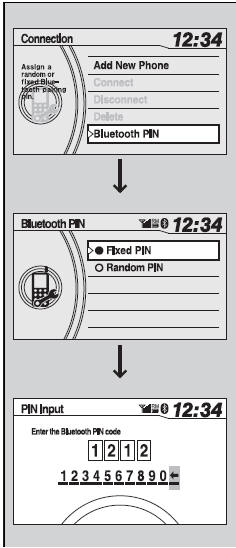

four-digit pairing code. ■ To change the Bluetooth PIN setting 1. Press the PHONE button or the

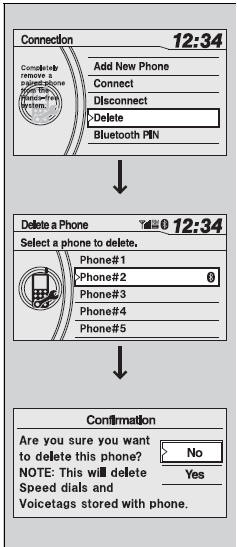

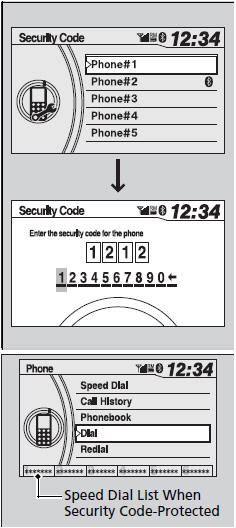

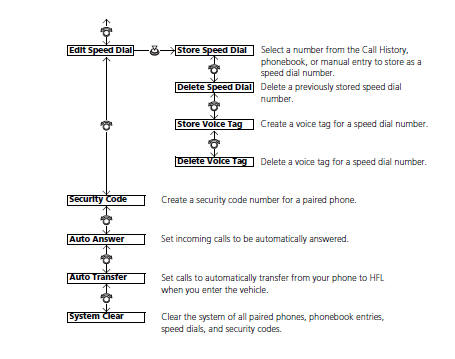

Rotate The default pairing code is 0000 until you change the setting. To create your own, select Fixed, and delete the current code, then enter a new one. For a randomly generated pairing code each time you pair a phone, select Random. ■ To delete a paired phone 1. Press the PHONE button or the ■To Create a Security Code You can protect each of the six cell phones with a security PIN. 1. Press the PHONE button or the
If the phone name you selected is security
code protected the speed dial list becomes

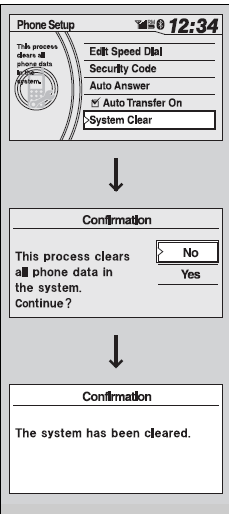

If the phone is already security code protected, you need to enter the current security code before clearing the code or creating a new one. ■Automatic Answering You can choose when the HFL system automatically answers incoming calls. 1. Press the PHONE button or the ■Automatic Transferring If you get into the vehicle while you are on the phone, the call can be automatically transferred to HFL. 1. Press the PHONE button or the ■To Clear the System Security codes, paired phones, all stored voice tags, all speed dial entries, and all imported phonebook data are erased. 1. Press the PHONE button or the ■Automatic Import of Cellular Phonebook and Call History When your phone is paired, the contents of its phonebook and call history are automatically imported to HFL. When you select a person from the list in the cellular phonebook, you can see up to three category icons. The icons indicate what types of numbers are stored for that name. If a name has four or more numbers, ∙∙∙ appears instead of category icons. On some phones, it may not be possible to import the category icons to HFL. The phonebook is updated after every connection. Call history is updated after every connection or call. ■Speed Dial Up to 20 speed dial numbers can be stored per phone To store a speed dial number:

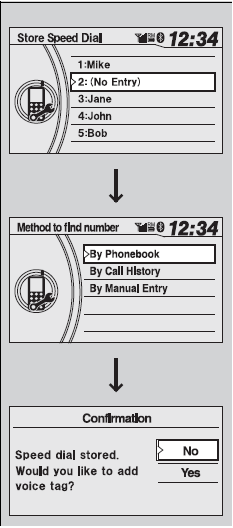

By Phonebook:
By Call History:
By Manual Entry:
5. When the speed dial is successfully stored,
you are asked to create a voice tag for the

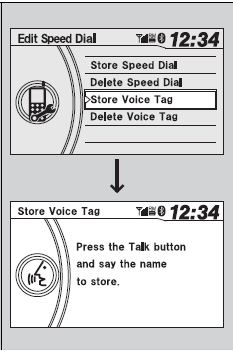

number. Rotate ■ To add a voice tag to a stored speed dial number 1. Press the PHONE button or the Avoid using duplicate voice tags. Avoid using “home” as a voice tag. It is easier for HFL to recognize a longer name. For example, use “John Smith” instead of “John.” ■ To delete a voice tag 1. Press the PHONE button or the ■ To delete a speed dial number 1. Press the PHONE button or the ■Making a Call You can make calls by inputting any phone number, or by using the imported phonebook, call history, speed dial entries, or redial. Any voice-tagged speed dial entry can be dialed by voice from any screen.

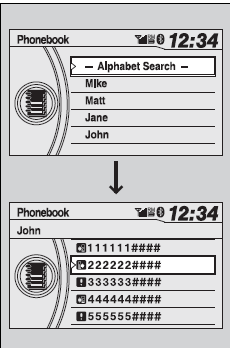

Press the The maximum range between your phone and vehicles is 30 feet (10 meters). Once a call is connected, you can hear the voice of the person you are calling through the audio speakers. ■ To make a call using the imported phonebook 1. Press the PHONE button or the ► Dialing starts automatically. ■ To make a call using a phone number 1. Press the PHONE button or the ■ To make a call using redial 1. Press the PHONE button or the Press and hold the ■ To make a call using the call history 1. Press the PHONE button or the ■ To make a call using a speed dial entry 1. Press the PHONE button or the The call history displays the last 20 dialed, received, or missed calls. (Appears only when a phone is connected to HFL.) Some phones do not support All Calls. On the Phone screen, the first six speed dials on the list can be directly selected by pressing the corresponding audio preset buttons (1-6). Select Select another speed dial to view another paired phone’s speed dial list. You can make a call from that list using the currently connected phone.
Any voice-tagged speed dial entry can be dialed by
voice from any screen. Press the ■Receiving a Call When there is an incoming call, an audible notification sounds (if activated) and the Incoming Call screen appears.
Press the
Press the Call Waiting.
Press the
Press the Ignore the incoming call if you do not want to answer it.
Press the ■Options During a Call The following options are available during a call. Mute: Mute your voice. Transfer: Transfer a call from HFL to your phone. Dial Tones: Send numbers during a call. This is useful when you call an automated phone system. 1. To view the available options, press the
PHONE button. Dial Tones: Available on some phones. |
