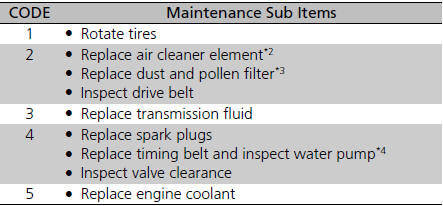

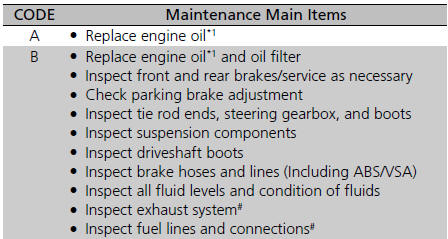

*1: If a message SERVICE does not appear more than 12 months after the
display is reset, change the
engine oil every year. *2: If you drive in dusty conditions, replace the air cleaner element every
15,000 miles (24,000 km). • Independent of the Maintenance Minder
information, replace the brake fluid every 3 years. |
Honda Odyssey Service Manual > Rear Spring/Bump Stop Removal/Installation: Installation
Install the bump stop (A) to the body if removed. 10 x 1.25 mm44 N·m (4.5 kgf·m, 32 lbf·ft)A Install the spring (A), spring mounting cushion (C), and the lower spring seat (D). Align the bottom of the spring with the stepped part of the lower spring seat and lower arm B as shown. ABABCDD Positio ...
