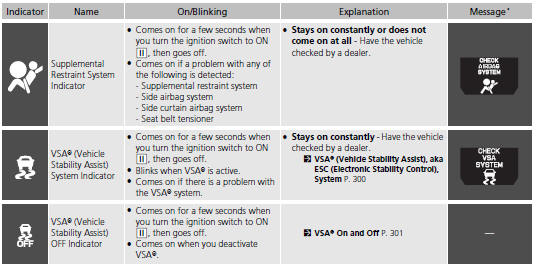

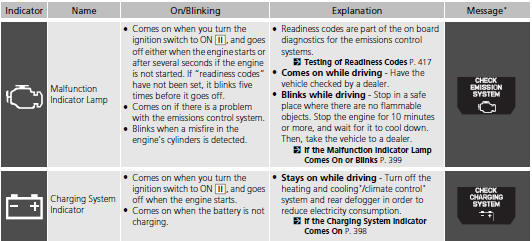

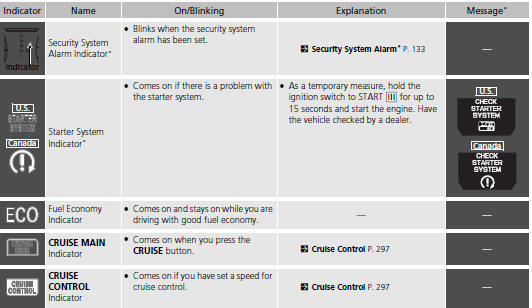

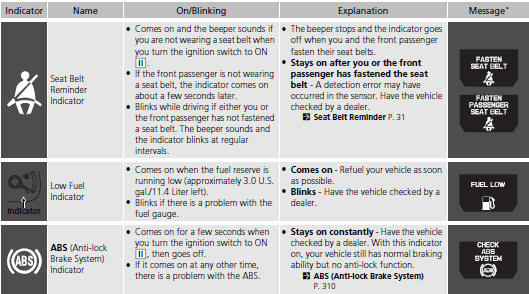

Honda Odyssey Owners Manual: Indicators
Honda Odyssey Owners Manual / Instrument Panel / Indicators

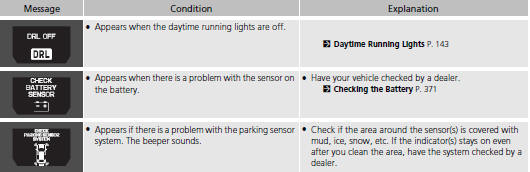

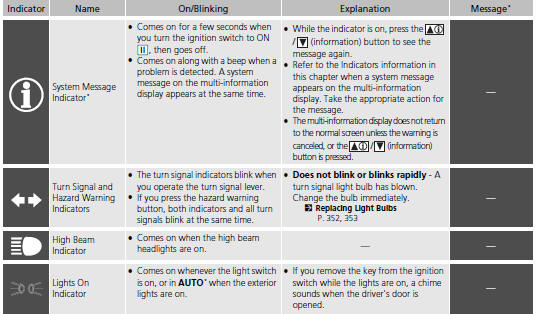

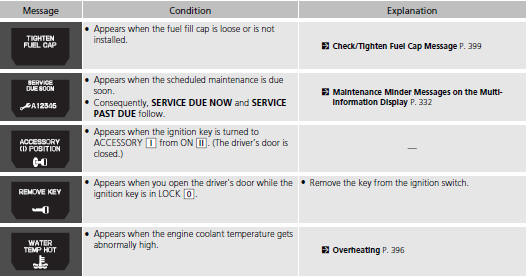

Multi-Information Display Warning and Information Messages* The following messages appear only on the multi-information display. Press
the
|
/
(information) button to see the
message again
with the system message indicator on.
