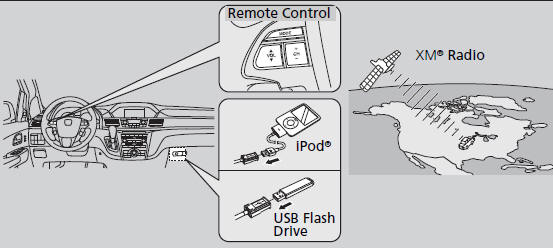

About Your Audio System On models with navigation system, see the Navigation System Manual for operation of the audio system, Bluetooth®HandsFreeLink®, and voice commands for these features. The audio system features AM/FM radio and the XM® Radio Service*. It can also play audio CDs, WMA/MP3/AAC files, iPod®*, USB flash drives*, and Bluetooth®* devices. You can operate the audio system from the buttons and switches on the panel, or the remote controls on the steering wheel*. XM® Radio is available on a subscription basis only. For more information on XM® Radio, contact a dealer. XM® Radio is available in the United States and Canada, except Hawaii, Alaska, and Puerto Rico. XM® Radio is a registered trademark of Sirius XM Radio, Inc. Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not supported. iPod® is a registered trademark owned by Apple Inc. State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. |
