Honda Odyssey Owners Manual: Automatic Lighting Control*

Automatic lighting control can be used when the ignition switch is in ON .

When you turn the light switch to AUTO, the headlights and other exterior lights will switch on and off automatically depending on the ambient brightness.
►You can change the auto light sensitivity setting.

We recommend that you turn on the lights manually when driving at night, in a dense fog, or in dark areas such as long tunnels or parking facilities.

The light sensor is in the location shown below.

Do not cover this light sensor with anything; otherwise, the automatic lighting system may not work properly.

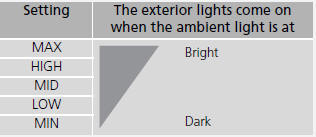

Adjust the auto light sensitivity as follows:

    Manual Operation

    Automatic Lighting Off Feature
